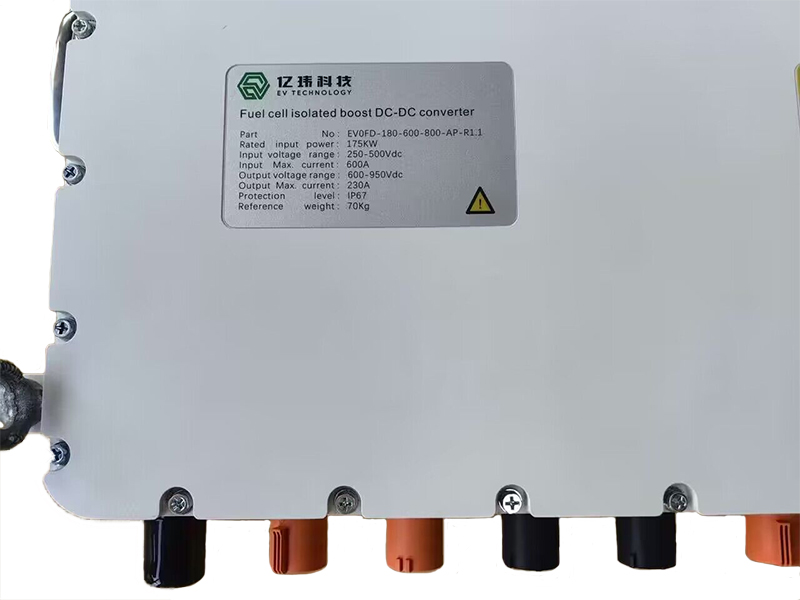

Fuel cell isolated boost DC-DC converter
- Category Name :Fuel cell DC DC Converter
- Email :zhang@ev-inc.cn
- Telephone :+86-577-61675999
- Whatsapp :
- Skype :
The third generation DC/DC converter
The fuel cell-isolated boost DC-DC converter is used to convert the low-voltage DC boost of the fuel cell output into a high-voltage DC output, matching the voltage requirements of an electric vehicle, providing power to an electric vehicle while charging the power battery.The product has a power density of up to 5.3KW/L,resulting in a higher power density with minimal volume and increased economical utility. The low-pressure and high-pressure sides can withstand the pressure level of 3000Vdc, high insulation impedance, enhance the vehicle insulation impedance, improve vehicle safety.
Technical features
● SiC power device design;● High switching frequency, high power density, high efficiency;
● The company's third generation of new standard high power density, resonant soft switch technology, the use of more advanced circuit topology, digital control;
● Better dynamic adjustment capability to adapt to the large range of fluctuations in the load, to meet the requirements of vehicle mobility.
Apply the schematic
Technical parameters
|
Model |
EV1FD-60-400 |
EV1FD-80-400 |
EV1FD-130-600 |
|
Low-voltage side |
|||
|
Input voltage range |
80Vdc~400Vdc |
||
|
Input Max. current |
350A（Peak 400A） |
450A（Peak 500A） |
600A（Peak 650A） |
|
Input Max. power |
60KW |
80KW |
130KW |
|
High-voltage sige |
|||
|
Output voltage range |
400Vdc to 750Vdc according to the vehicle lithium platform configuration |
||
|
Output Max. current |
150A |
200A |
300A |
|
PDU |
Up to 6 outputs, equipped with relay and insurance |
||
|
Protection |
|||
|
Software protection |
Over voltage, Over current, Over temperature Communication failure |
||
|
Hardware protection |
Input over current、Output over voltage |
||
|
System |
|||
|
Efficiency |
Max. 97%；≥96% @ 20%~100% load |
||
|
IP & Galvanic insulation |
IP67, 3000Vdc for isolation of housings, low pressure side to high pressure side |
||
|
Cooling |
Water，-40℃~60℃，＞20L/min |
||
|
Communication & control |
CAN；Input current control |
||
|
Control accuracy |
≤1% @ 30% ~ 100% load，≤3% @≤30% load |
||
|
Precharge |
Input available, Output available, PDU available |
||
|
Mechanical |
|||
|
Dimension |
With PDU:TBD,without PDU:450mm x 550mm x 120mm |
||
|
Reference weight |
Max. 50kg |
||
Temperature drop graph
