Portable Power Station
The portable power station, an all new design of using touch screem and lithium iron phosphate batteries, has the characteristics of many charging and discharging cycles, large battery's capacity, high discharge power, wide application scenarios, satisfying multi-purpose equipment charging, and easy portability providing you with a simple mobile power supply solution.
Technical features:
●Many charging and discharging cycles,Wide application scenarios,Easy to carry;
●Large battery's capacity, High discharge power;
●500Wh large-capacity lithium battery, peak 1KW AC 220Vac output, satisfying common electrical appliances.

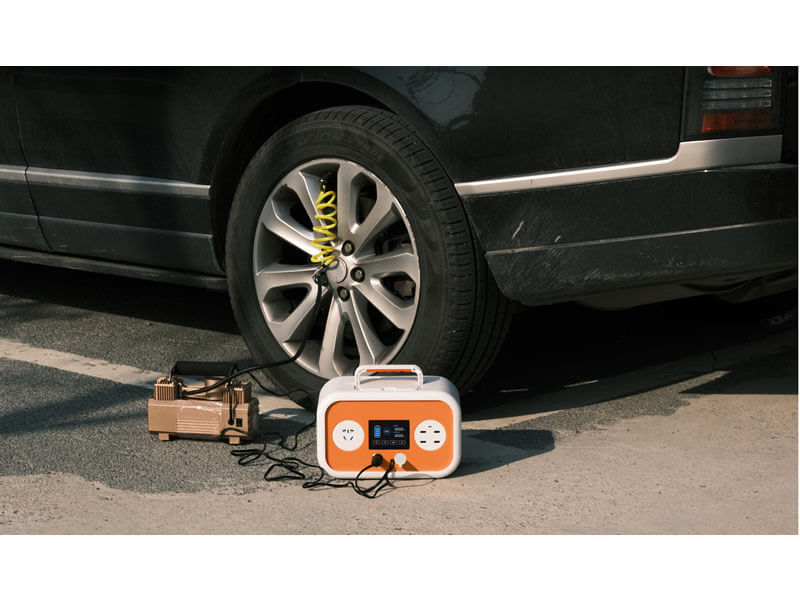

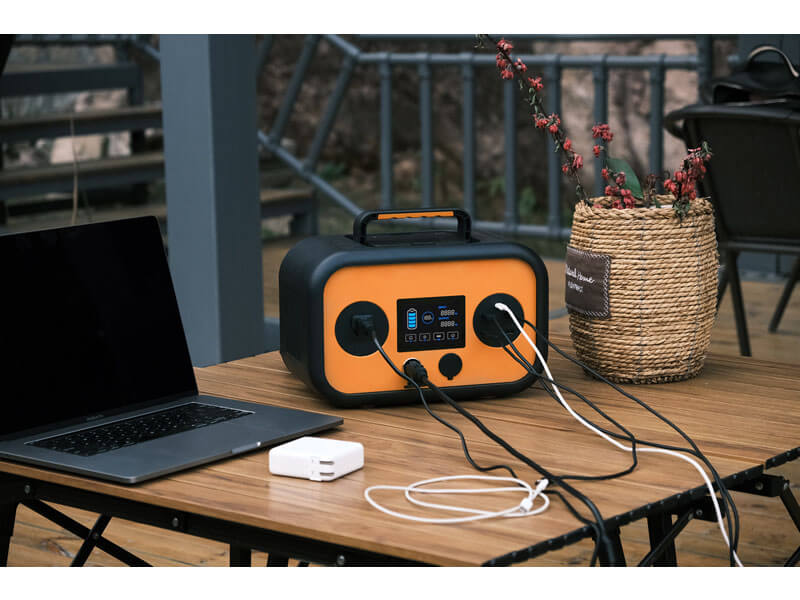

Application diagram:
Product Specifications:
|
Basic Specifications |
|
|
Overall size |
320mm×203mm×177mm |
|
Total Weight |
≤7.2kg |
|
Battery pack energy |
512Wh |
|
Nominal output energy |
475Wh 220VAC 2.27A |
|
Output |
|
|
AC output voltage, frequency |
220V±5% 50Hz |
|
AC output power |
Rated power 500W (peak power 1000W) |
|
AC output waveform |
pure sine wave |
|
DC output voltage/current |
13VDC/10A |
|
USB-A(x4） |
5VDC/2.4A |
|
Type-C(x1） |
5VDC, 9VDC, 15VDC, 20VDC,3.25A, Max 65W |
|
Battery |
|
|
Machine protection function |
Overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, short circuit protection, overvoltage protection, etc. |
|
Charging parameters |
Adapter 24V⎓3A support (12VDC~28VDC) |
|
Conversion efficiency |
≥80% |
|
Cycle life |
≥1000 times |
|
Charging temperature |
0℃ ~ 40℃ |
|
Operating temperature |
-10℃ ~ 40℃ |

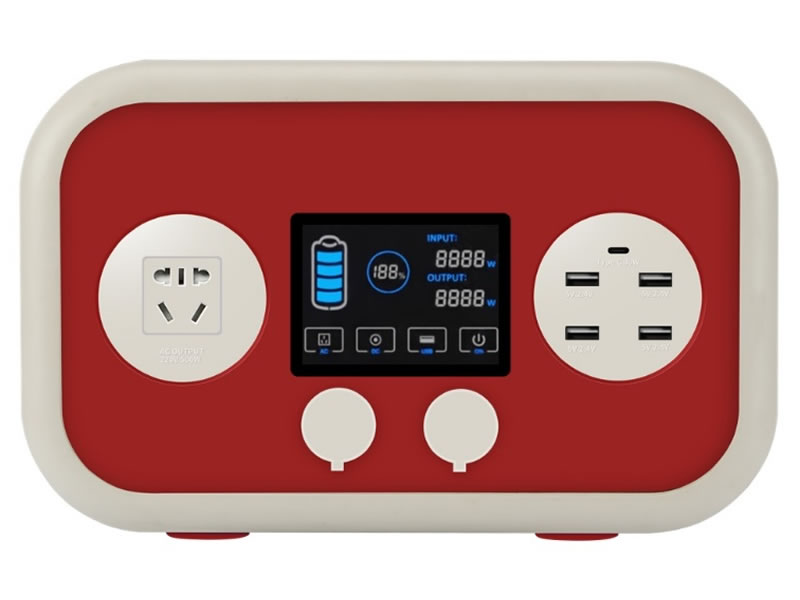

Product appearance diagram:
 |
 |
